Description

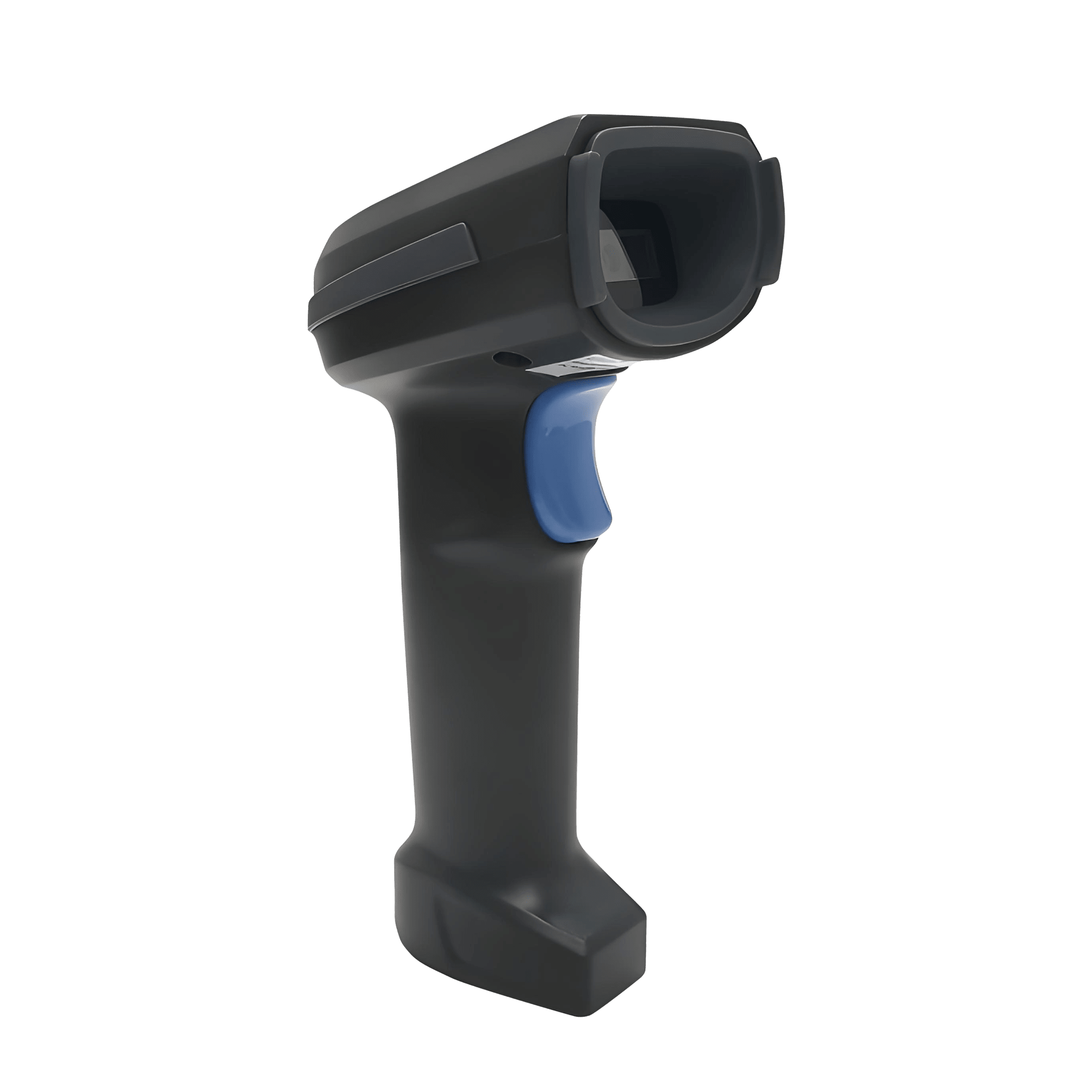

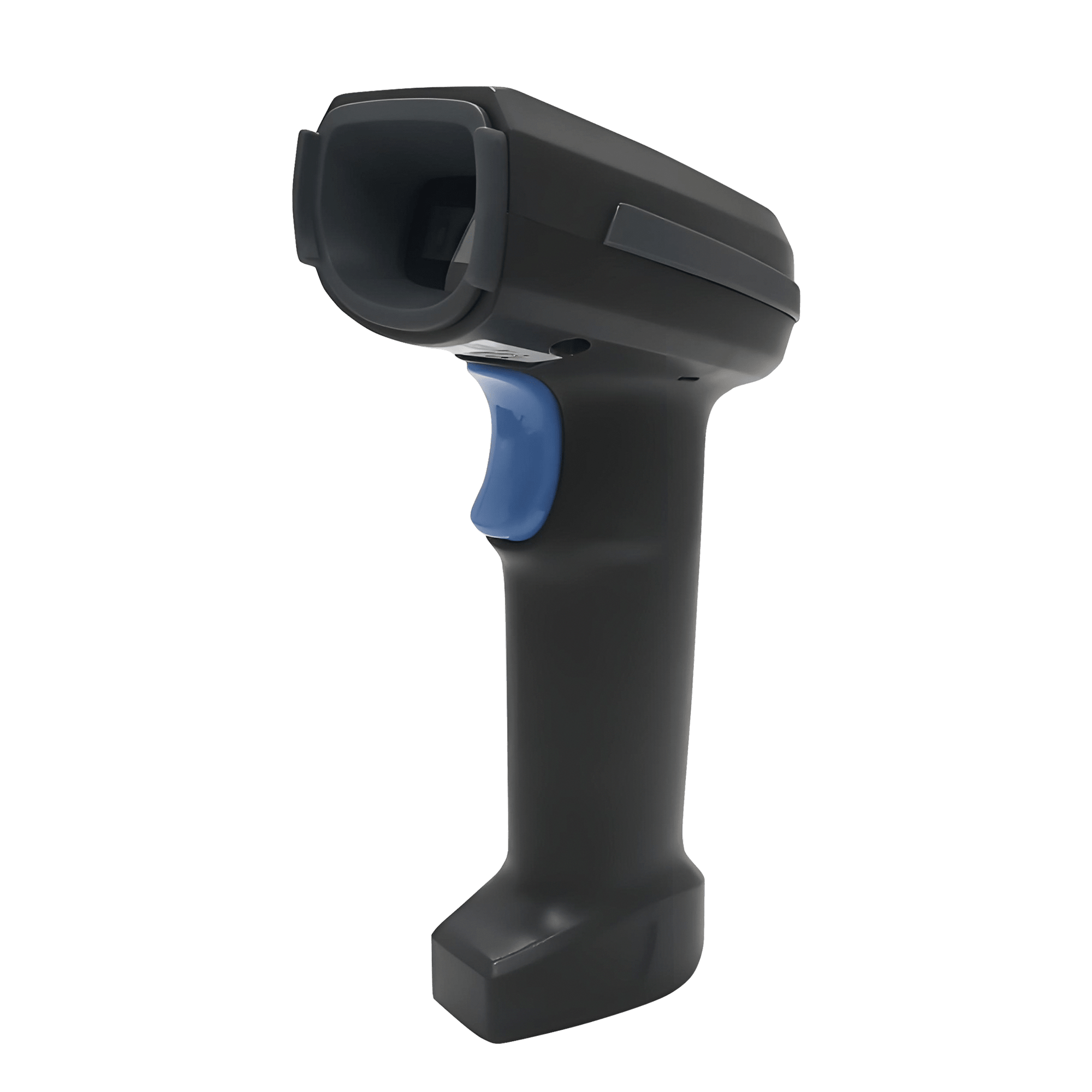

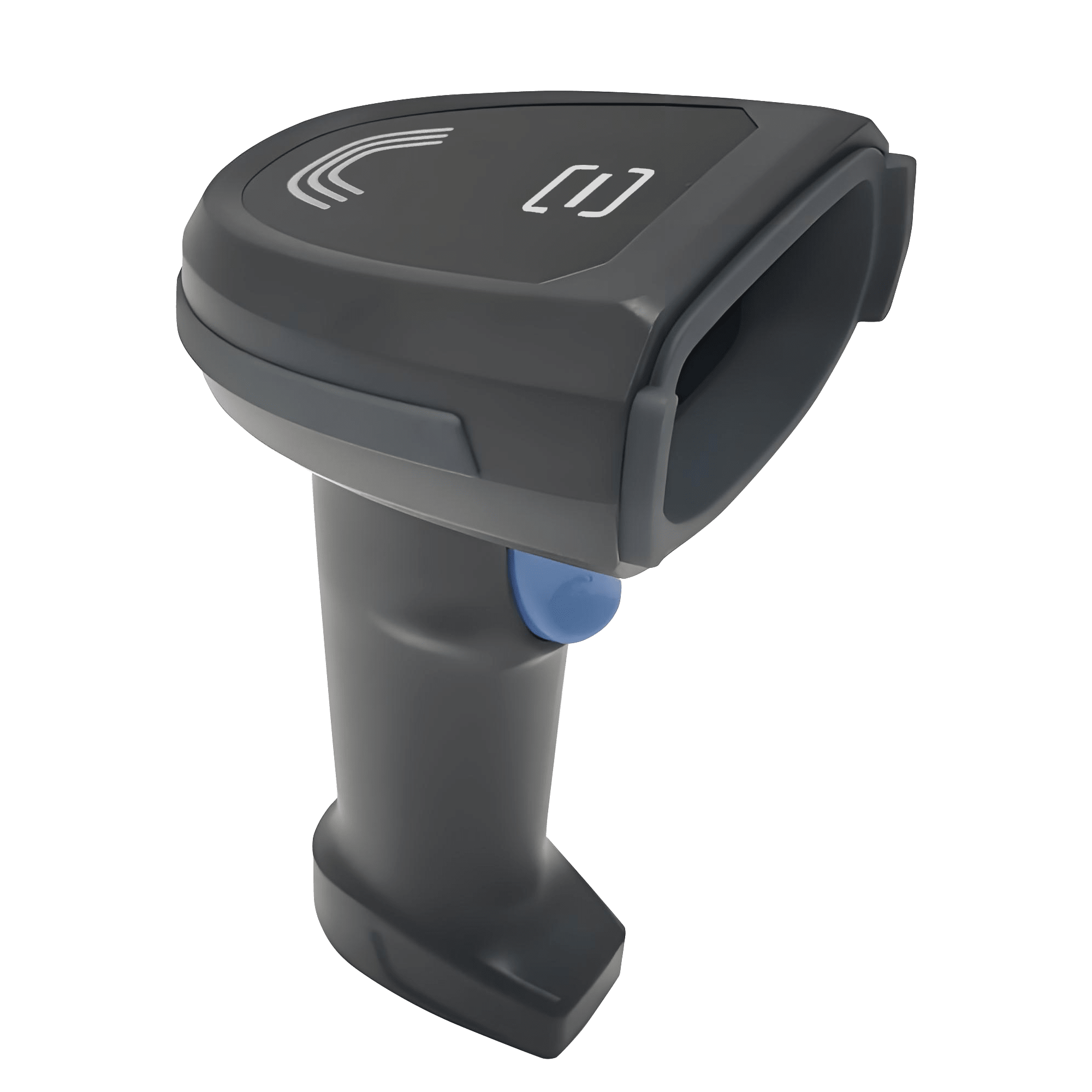

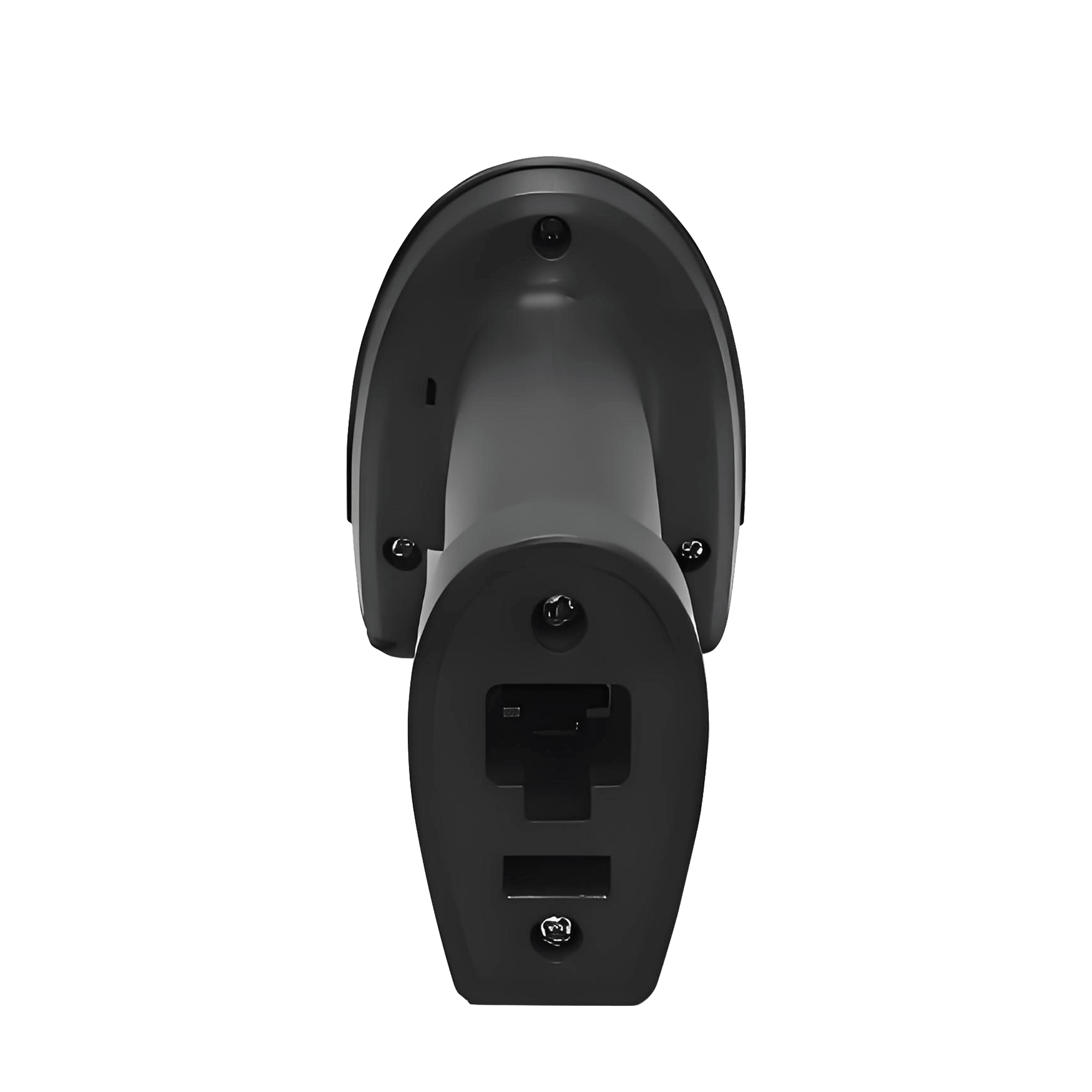

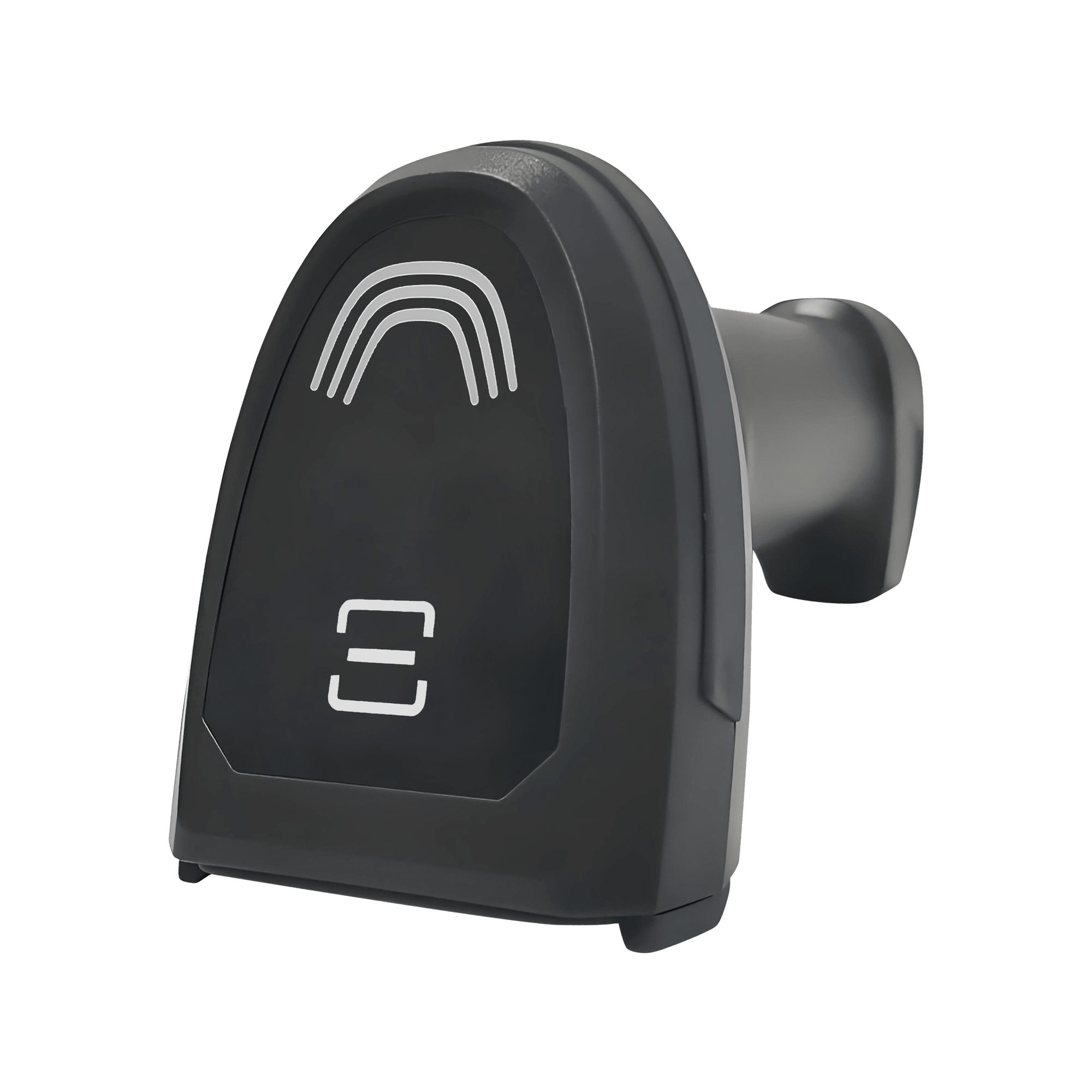

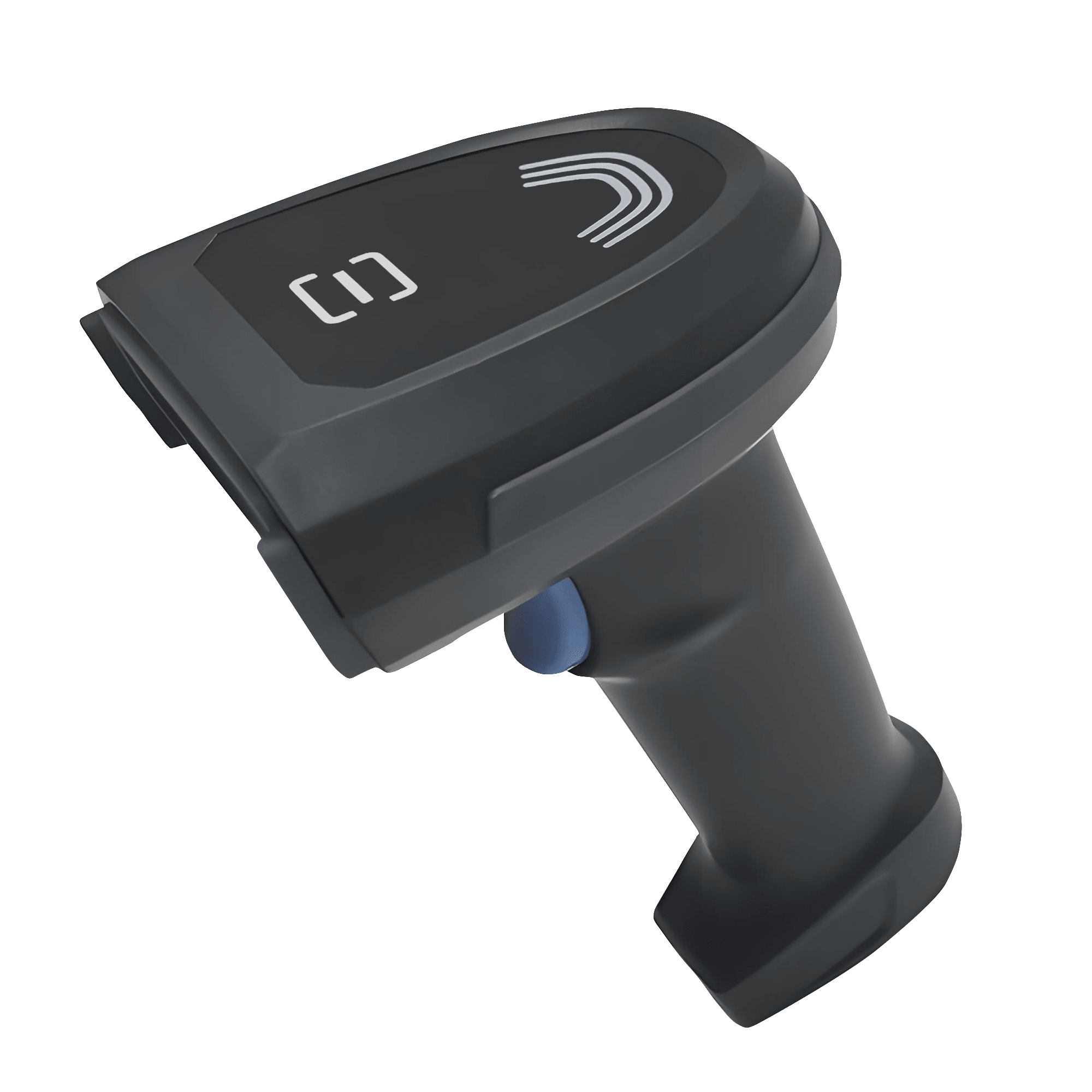

The Winson WNI-7330DPM is a 1D/2D handheld barcode image scanner designed for fast and reliable barcode scanning. It supports both 1D and 2D barcodes and features a Rolling Shutter image sensor with a resolution of 640 × 480 pixels.
With a decoding speed of up to 120 FPS, the WNI-7330DPM provides fast barcode capture for everyday scanning applications. Its Plug & Play functionality allows for easy installation without requiring additional drivers.
The scanner uses a White LED light source with a Green LED aiming light for barcode targeting. It supports USB HID Keyboard and USB VCP interfaces for convenient connectivity.
The WNI-7330DPM also features flexible scanning angles, with a Pitch angle of ±55°, Skew angle of ±70°, and Tilt angle of ±360°. Its durable construction can withstand drops from up to 1.5 meters onto a concrete surface.
| Specification | Details |
|---|---|
| Brand | Winson |
| Model | WNI-7330DPM |
| Type | 1D/2D Handheld Barcode Image Scanner |
| Barcode Support | 1D & 2D Barcodes |
| Input Voltage | DC 5V ±5% (210mA) |
| Image Sensor | Rolling Shutter |
| Sensor Resolution | 640 × 480 Pixels |
| Decoding Speed | Up to 120 FPS |
| Light Source | White LED |
| Aim Light Source | Green LED |
| Interface | USB HID Keyboard / USB VCP |
| Scanning Angle — Pitch | ±55° |
| Scanning Angle — Skew | ±70° |
| Scanning Angle — Tilt | ±360° |
| Drop Resistance | 1.5m drop onto concrete surface |
| Plug & Play | Yes |
| Warranty | 1 Year |
