Description

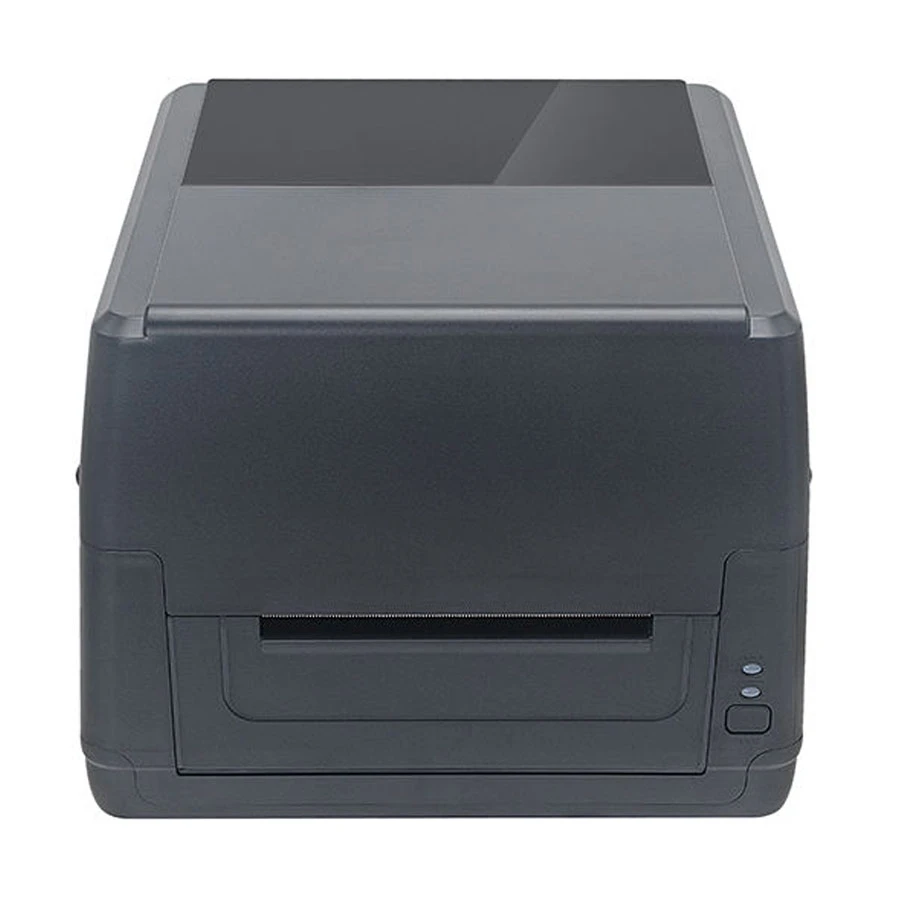

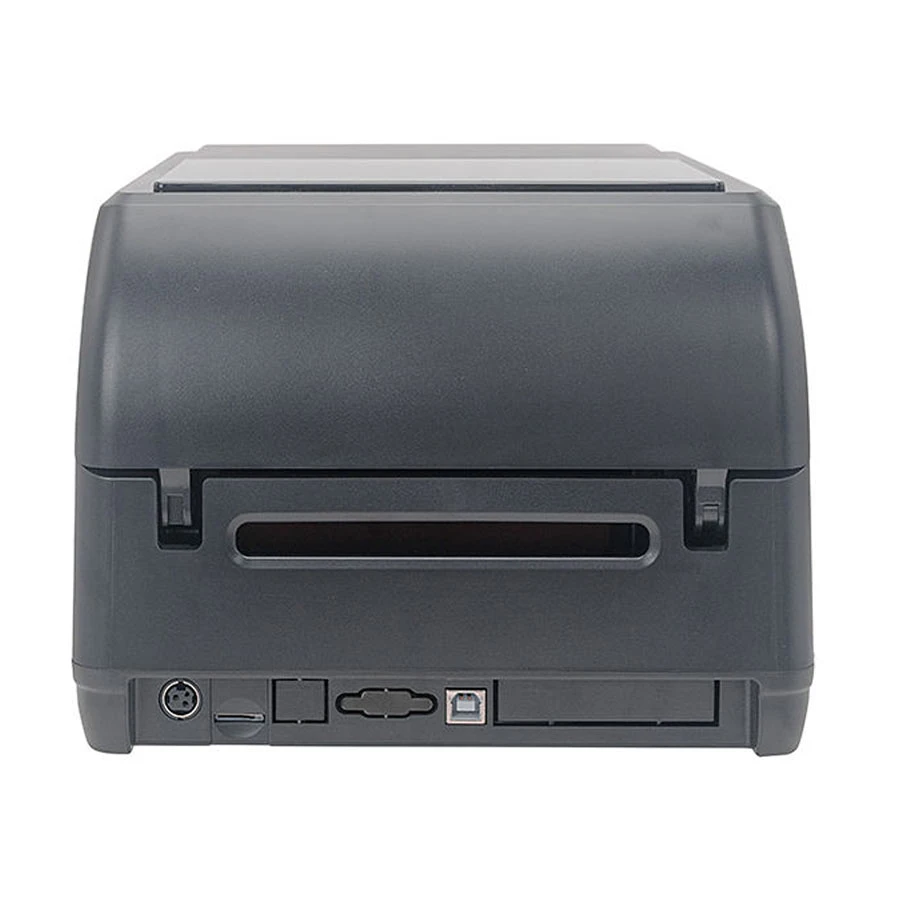

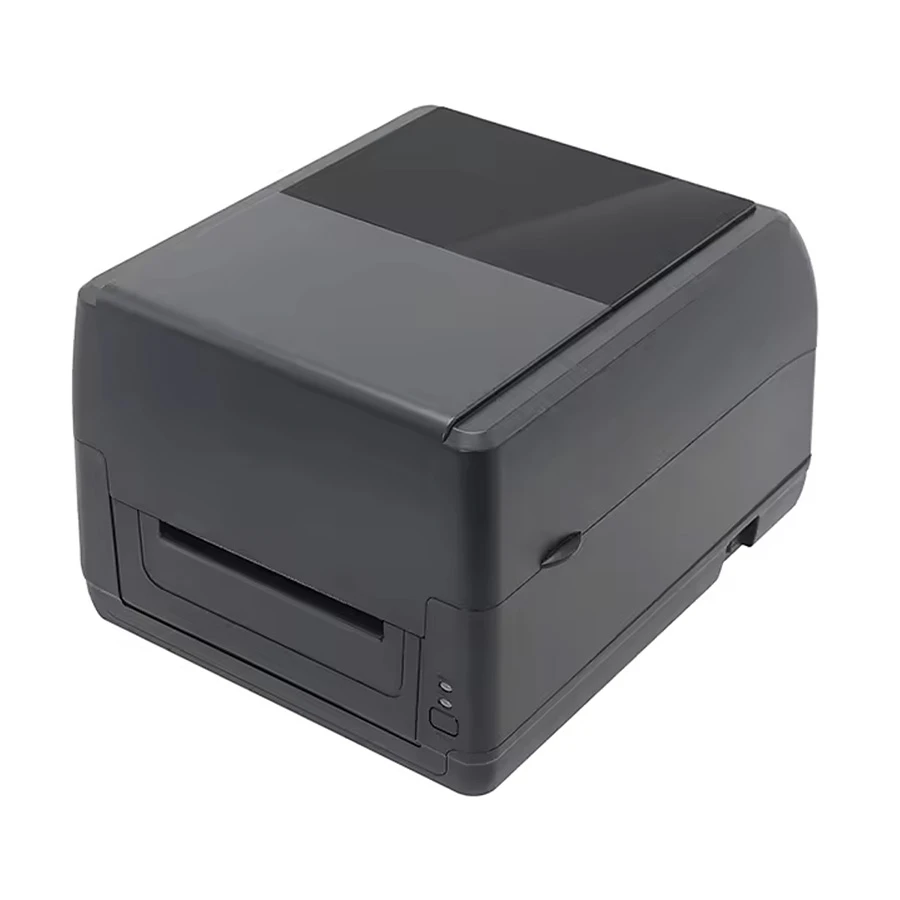

Product Overview
| ● Print speed up to 127mm/s | ● Ribbon roll capacity 300m(Outter roll ribbon) |
| ● Support TSPL, EPL, ZPL, DPL commands | ● Support multiple material printing |
Specifications
| Printing Features | ||
| Resolution | 203 DPI | |
| Printing method | Thermal Transfer | |
| Max.print speed | 127 mm/s Max. | |
| Max.print width | 104 mm (4.09”) | |
| Max.print length | 1778 mm (70″) | |
| Media | ||
| Media type | Continuous, gap, black mark, fan-fold and punched hole | |
| Media width | 25.4~118mm (1.0”~4.6”) | |
| Media thickness | 0.06~0.254 mm (2.36~10mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1 “~ 3 “) | |
| Label length | 10 ~ 1778 mm(0.39″ ~ 70″ ) | |
| Label roll capacity | 127 mm (5“) OD (External diameter) | |
| Ribbon capacity | Max.300m | |
| Ribbon width | 110 mm | |
| Performance Features | ||
| Processor | 32-bit CPU | |
| Memory | 8MB Flash Memory/8MB SDRAM/Flash memory can be expanded to Max. 4 GB | |
| Interface | Standard:USB TF card Optional: Lan/WIFI/Bluetooth/Serial | |
| Sensors | ① Gap sensor ② Cover opening sensor |
③ Black mark sensor ④ Ribbon sensor |
| Fonts/Graphics/Symbologies | ||
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. | |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 | |
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
| Rotation | 0°、90°、180°、270° | |
| Emulation | TSPL、EPL、ZPL、DPL | |
| Physical Features | ||
| Dimension | 282 mm (D) x 232 mm (W) x 171 mm (H) | |
| Weight | 2.56kg | |
| Reliability | ||
| Print head life | 30 km | |
| Software | ||
| Driver | Windows/Linux/Mac | |
| SDK | Windows/Android/iOS | |
| Power supply | ||
| Input | AC 110~240V,1.8A, 50-60Hz | |
| Output | DC 24V, 2.5A, 60W | |
| Options | ||
| Factory Options | ① WiFi module ② RS-232C(2400-115200 bps) communication interface; ③ Lan ④ Serial | |
| Dealer Options | ① External paper roll holder and 1 “paper roll; ② Extension board for external paper roll holder |
③ Cutter ④ Peeling machine |
| Environmental Conditions | ||
| Operation environment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing | |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing | |
