Description

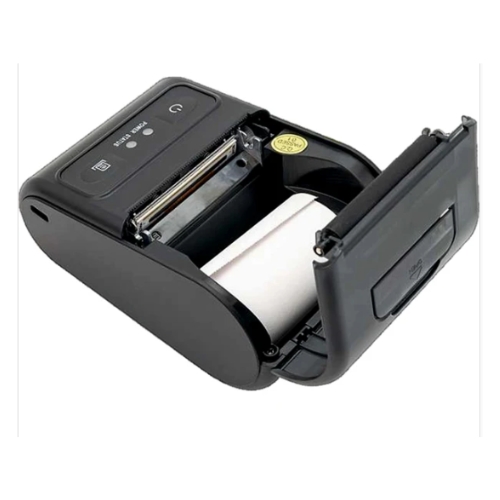

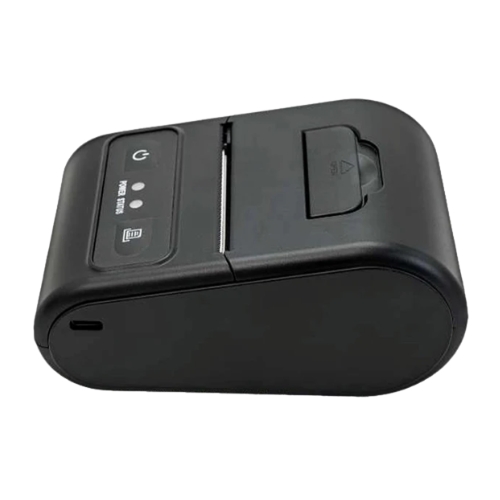

The Xprinter XP-P504A Portable Receipt Printer is a compact and lightweight 58mm direct thermal receipt printer designed for fast and reliable mobile printing. With 203 DPI resolution and a print speed of up to 70mm/s, it delivers clear, professional-quality receipts without requiring ink or ribbon.
Featuring USB + Bluetooth connectivity, the XP-P504A easily connects to Windows, Android, iOS, and Linux devices, making it ideal for POS systems, retail shops, restaurants, pharmacies, courier services, and field sales.
The built-in 7.4V 1500mAh rechargeable battery offers dependable mobile performance with up to 120 hours of standby time. It also supports ESC/POS commands, QR Codes, and major 1D barcode formats, ensuring compatibility with most billing and POS software.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Xprinter XP-P504A |
| Printing Method | Direct Thermal |
| Resolution | 203 DPI |
| Maximum Print Width | 48mm |
| Print Speed | Up to 70mm/s |
| Paper Width | 58mm |
| Paper Thickness | 0.06–0.08mm |
| Maximum Roll Diameter | 50mm |
| Interfaces | USB + Bluetooth |
| Memory | 64KB |
| Flash Memory | 1MB NV Flash |
| Command Language | ESC/POS |
| Barcode Support | UPC, EAN, CODE39, CODE93, CODE128, ITF, CODABAR, QR Code |
| Rotation | 0°, 90°, 180°, 270° |
| Battery | 7.4V / 1500mAh Rechargeable |
| Charging Time | Approximately 2 Hours |
| Standby Time | Up to 120 Hours |
| Charging Input | DC 5V / 2A |
| Operating System | Windows, Android, iOS, Linux |
| Printhead Life | 50KM |
| Dimensions | 126.5 × 84 × 59 mm |
| Weight | 280g |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -25°C to 55°C |
Applications
- Retail Stores
- Restaurants & Cafés
- Supermarkets
- Pharmacies
- Courier Services
- Mobile Sales & Field Operations
Warranty
1-Year Official Warranty (Without Printhead).
